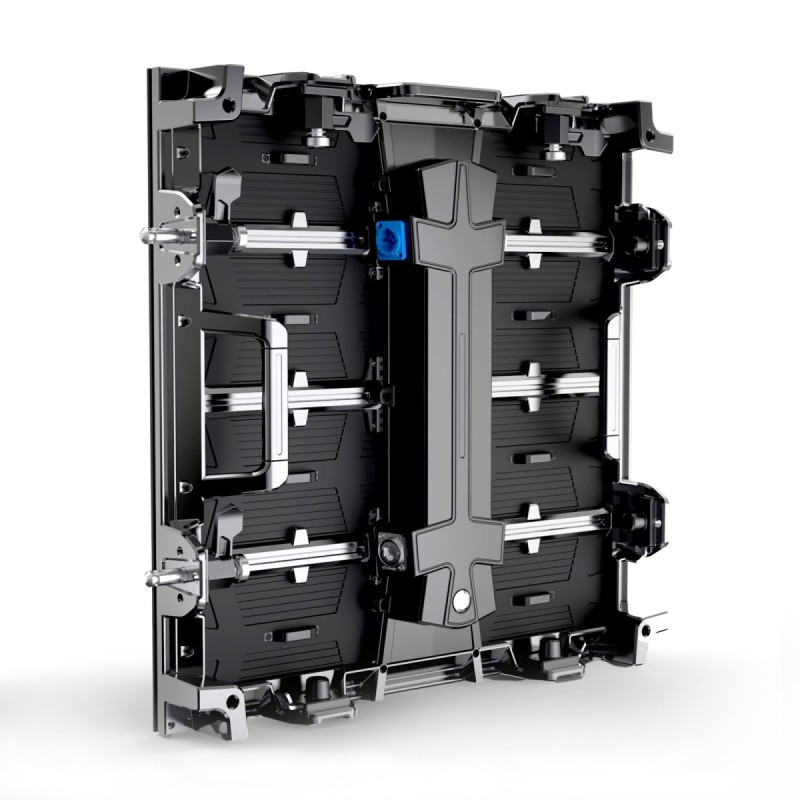

HELVIA MGC-3.91-V77 – Outdoor LED module for composite screens for rental 3.91 mm pitch 500x500mm

Magic Series: The Modular LED Screen Designed for Rental The Magic series is the ideal solution for the rental industry, combining advanced technology, reliability, and practicality. Designed for quick and intuitive installation, it optimizes time and reduces operational costs during events. Crafted with a durable die-cast aluminum structure, the Magic series features an innovative 125×500 mm tile format that minimizes gaps between modules and reduces the need for connectors, ensuring greater continuity and easier assembly. Equipped with Nationstar SMD 1921 LEDs, it delivers reliability, long lifespan, and superior visual quality, with vivid and sharp images that enhance every detail. Available in various formats and configurations, with the possibility of curved installations, it is perfect for indoor and outdoor events, meeting the needs of professionals and operators in the rental industry.

339,359 Ft

- +
Kedvencekhez
Összehasonlítás
SKU: U821U Categories: , ,

A HELVIA MGC-3.91-V77 – Outdoor LED module jellemzői

Specifikációk

  • LED Module pitch 3.91mm 500x500mm
  • Suitable for outdoor applications
  • Equipped with long lasting high quality Nationstar LEDs
  • High refresh rate
  • Innovative 500×125 mm tile design eliminating cross seams and reducing connections
  • 65mm Aluminium frame convenient for storage and transportation
  • Protective corners (optional), multi rib reinforced structure, collision resistant pillars
  • Zip hole design for quick and easy installation
  • Available in curved or bevel edge versions for cube (optional)
  • Physical Pitch: 3.9 mm
  • LED type: Nationstar SMD 1921 white
  • Tile Dimension (mm): 500 x 125
  • Panel Dimensions (W x H x D) (mm): 500x500x65
  • Panel Material: Die-casting Aluminum
  • No. of tiles per panel (W x H): 1×4
  • Physical Resolution of Panel (W x H): 128 x 128
  • Weight Per Panel: 7 kg
  • Weight Per m?: 24-28 kg/m?
  • Processing: 16 bit
  • Colors: 281 trillion
  • Color Temperature: 6000-10,000 (Adjustable)
  • Contrast Ratio: 5,000 : 1
  • Average/Max Power Consumption: 80 W/150W per panel
  • Operating and storage Temperature/Humidity: -30 to 50? / 10% to 90%
  • Brightness: 4500 nits adjustable 0-100 classes
  • Refresh Rate: Up to 7680 Hz
  • Viewing Angle H/V: 160°/140°
  • Expected LED Lifetime (Max): 100,000 hours
  • IP Rating: Front IP 65, Back IP 54
