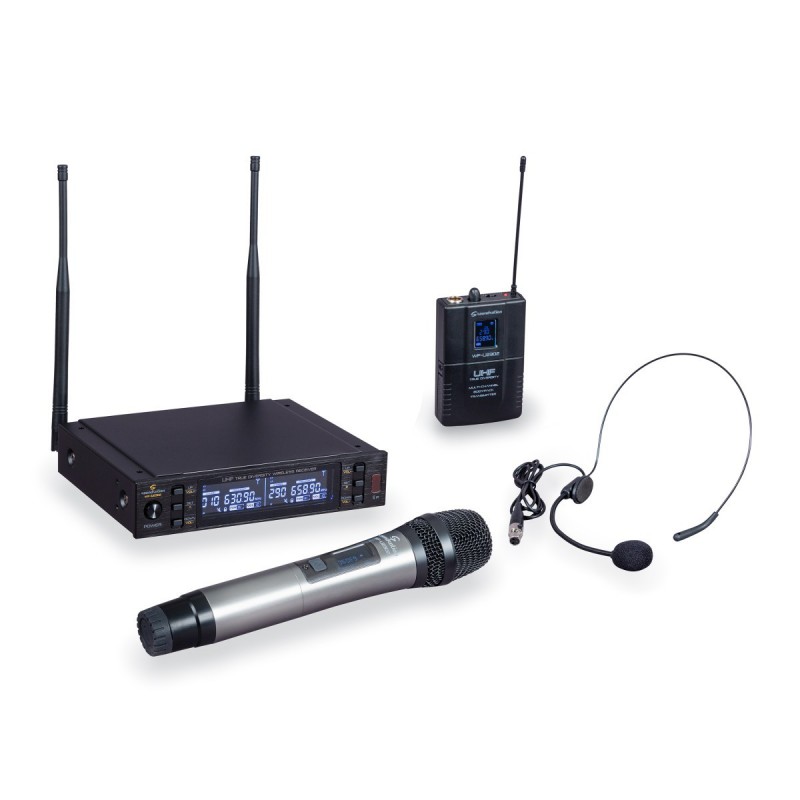

A SOUNDSATION WF-U2302HP – True Diversity Dual Wireless Microphone System jellemzői
Specifikációk
- UHF True Diversity Technology to aŹŹvert Interferences
- 300 Preset Frequencies and IR Matching System for Quick Setup
- 630-660MHz UHF Band
- Simple and Outright User Interface with LCD display on Transmitter and Receiver
- Digital Pilot Technology to allow Multisystem Operation
- Transmitter AF-level and Battery-Low Monitoring directly on the Receiver
- 80m Ideal Distance (without obstacles)
- Professional Handheld Microphone with Dynamic Cardioid Capsule
- Bodypack with Connector Locking System
- Professional and Lightweight Headset with High-Sensibility Dynamic Cardioid Capsule
- Half 19″ Rack Unit with metal housing and removable antennas
- Optional Rack-Mount Kits for 1 o 2 units
- Carrier Frequency: UHF 630-660 MHz
- Dynamic Range: >90dB
- Frequency Response: 40Hz-15KHz ą3dB
- Audio Output Level: Balanced 400mV; Unbalanced 400mV
- Packing Dimensions (WxHxD): 435 x 104 x 321 mm
- Packing Gross Weight: 2.5 kg
- Receiver Power Supply: DC 12V / 500mA
- Consume Power: 7W
- Signal/Noise Ratio: >90dB
- Receiving Sensitivity: 5dBuV
- Receiver Dimensions (WxHxD): 210 x 43 x 187 mm (antennas not incl.)
- Antenna: max. 255 mm
- Net Weight: 0.53 kg
- Transmitter Power: 30mW (Max)
- Modulation Type: FM
- Battery Voltage: 3V (2×1.5V AA Battery)
- Continuous Using: 5 hours
- Hand-held Mic. Dimensions (W/DxH): ?35 (min) – ?53 (max) x 260 mm
- Hand-held Mic. Net Weight: 0.335 kg (batteries included)
- Pocket Transmitter Dimensions (WxHxD): 62 x 103 x 30 mm
- Pocket Transmitter Antenna (W/DxH): ?3 x 9 mm
- Pocket Transmitter Net Weight: 0.132 kg (batteries included)
