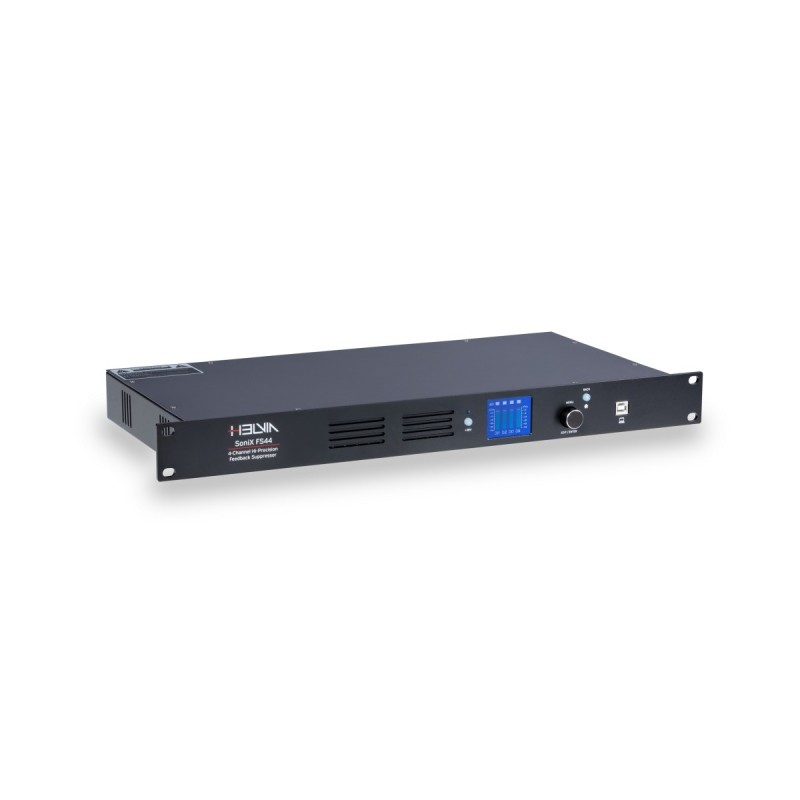

A HELVIA SONIX FS44 – 4-Channel Hi-Precision Feedback Suppressor jellemzői
Specifikációk
- ADI’s 4th generation SHARC processor
- Core clock of up to 450MHz
- Built-in 24-segment 4-channel independent high-precision adaptive digital notch filters
- Automatic phase and frequency shifting functions
- 6-segment filters for each channel with 6-types of parametric filters/notch filters/high and low shelves/all-pass
- Balanced Mic/Line Inputs with Phantom Power and Balanced Outputs
- Limiter function for all 4 Channels
- USB/RS485 remote connection function
- PC software with multiple unit control
- 12 Scenes with save and recall function
- Password locking function
- Input Channel: 4 CH-XLR/TRS/LINE
- Output Channel: 4 CH-XLR
- Frequency Response: 20Hz-20kHz
- Input Sensitivity: >-50dB
- Input impedance: 20kohm
- Signal noise ratio: >95dB @ Input potentiometer MIN
- Auto Mix: Routing Setup
- X-over: The high and low pass types/slopes/frequencies are selectable
- EQ: Different filter types can be selected in 6 segments
- Output Level: 0dB
- Scene: 12 scenes saving and calling types
- Notch Num: 4X24 segments, with dynamic and static Settings available
- Speed: High, medium and low can be set
- Compressor: -48 ÷ +24dB
- Panel Lock: Panel locking function with Password
- Display: 2.0” color TFT
- Front panel control: USB interface, key encoding wheel Settings, 48V and BACK buttons
- Rear panel control: In/Out connectors, Power connector, RS485 interface
- Power consumption: <30W
- Power supply: AC90V ÷ AC240V / 50-60Hz
- Product Size (WxDxH): 483 x 226 x 45 mm (19 x 8.8 x 1.78 in.)
- N.W / G.W.: 2.8Kg / 3.2Kg (6.17 / 7.05 lbs.)
